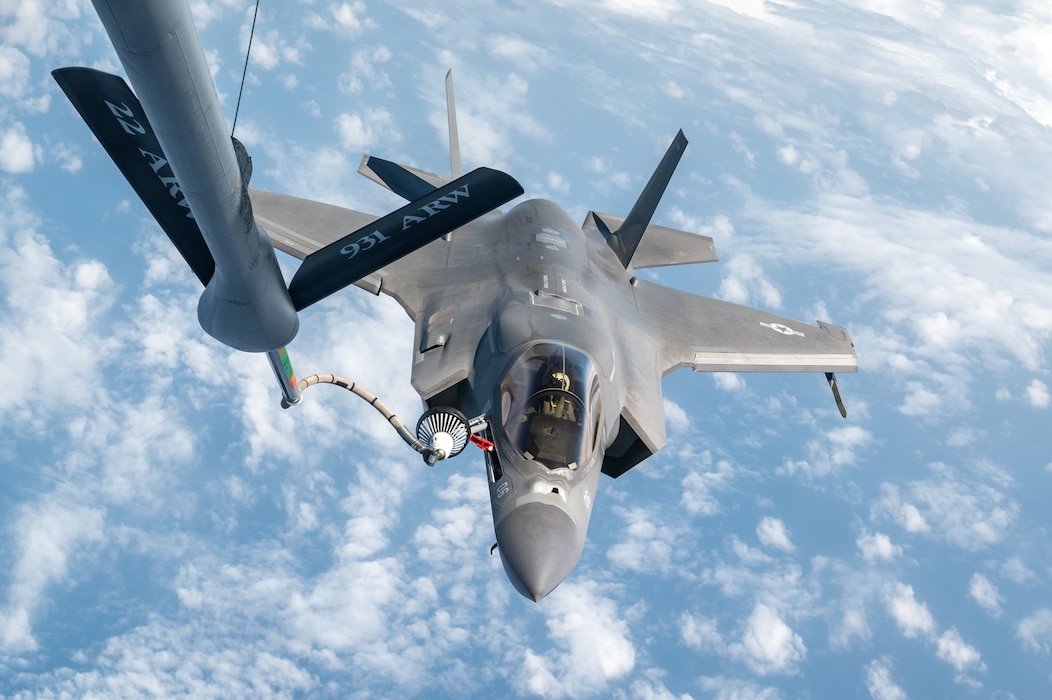

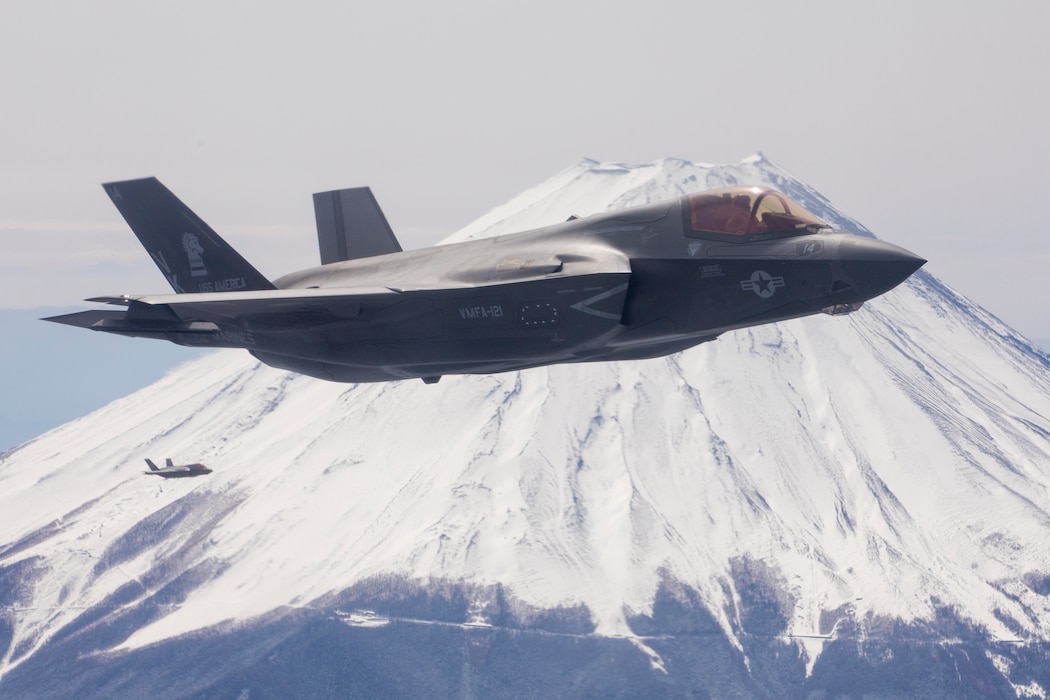

The F-35B Lightning II aircraft is the U.S. Marine Corps’ short takeoff and vertical landing (STOVL) variant of the F-35 Joint Strike Fighter. It provides fifth-generation stealth, advanced sensors, and network-enabled capabilities and is designed to operate from expeditionary airfields, amphibious ships, and other environments with limited runway space.

The F-35B supports the Marine Air-Ground Task Force (MAGTF) and Joint Force operations across a wide range of mission sets, including anti-air warfare, air reconnaissance, and offensive air support.

Role in Marine Corps Operations

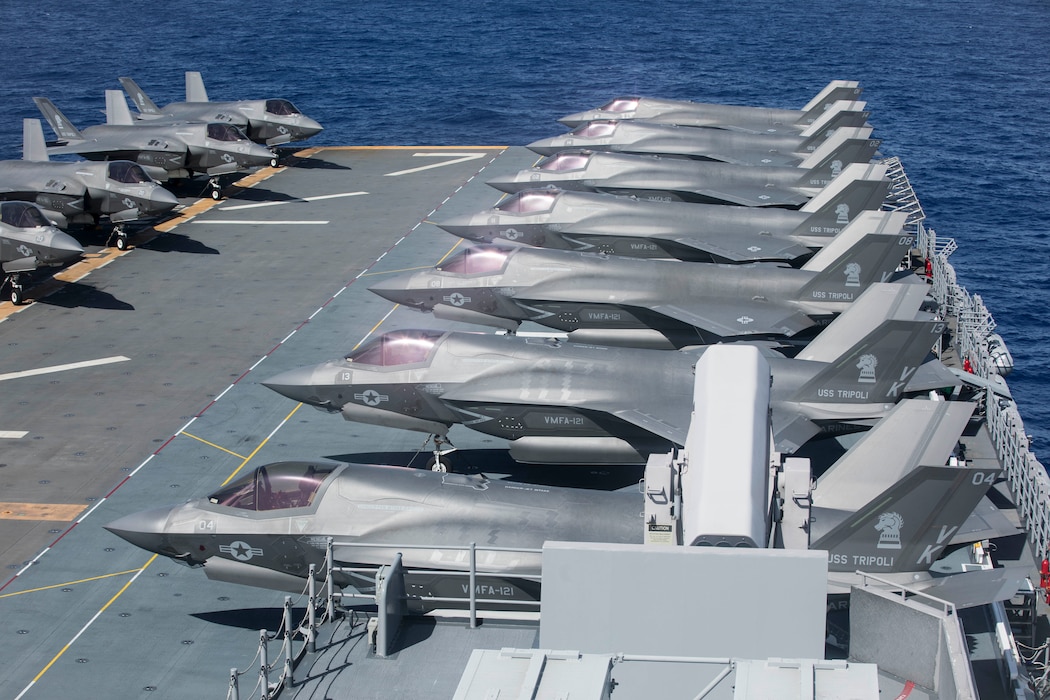

  • Expeditionary Flexibility: Operates from amphibious ships (LHA/LHD), aircraft carriers (CVN), and austere bases with runways shorter than 2,000 feet.

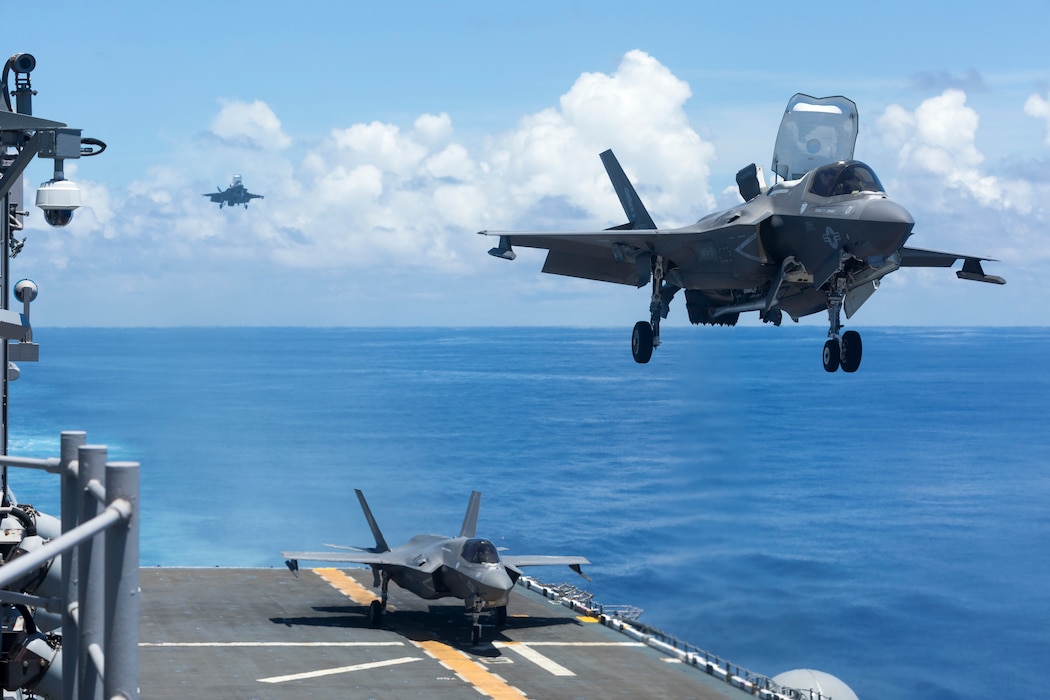

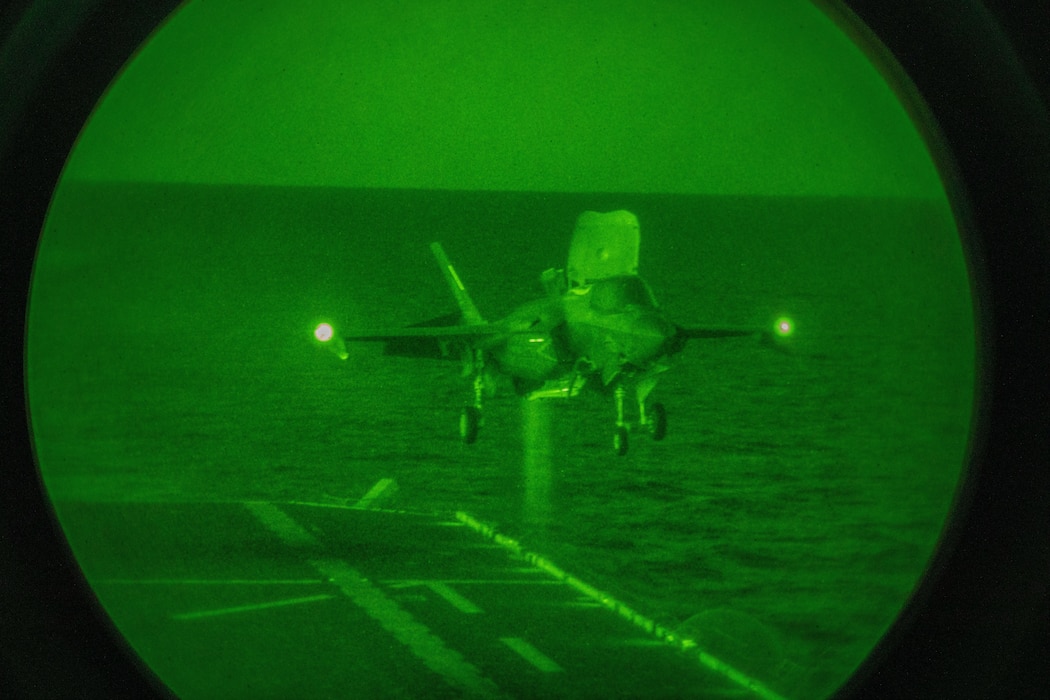

  • STOVL Capability: Enables deployment in environments without full-length runways.
  • Survivability: Very Low Observable (VLO) technology reduces radar signature and its advanced stealth allows operation inside contested threat environments.
  • Sensor Suite and Connectivity: Integrated radar, electronic warfare, infrared, and optical sensors allow for a single, comprehensive battlespace picture in real-time, while its communication systems enable data sharing across air, ground, and sea forces.


Specifications

Category   Data
Length   51.2 ft (15.6 m)
Wingspan         35 ft (10.7 m)
Wing Area   460 ft² (42.7 m²)
Empty Weight   32,300 lb (14,651 kg)
Max Gross Weight   60,000 lb class (27,216 kg)
Maximum Speed   Mach 1.6 (approximately 1,200 mph)
Combat Radius (Internal Fuel)   >450 nautical miles (833 km)
Maximum Range (Internal Fuel)   >900 nautical miles (1,667 km)
Internal Fuel Capacity   13,100–13,500 lb (5,942–6,123 kg)
Maximum G-Rating   7.0
Maximum Thrust   38,000 lb (afterburner)
Vertical Lift Thrust   40,500 lb

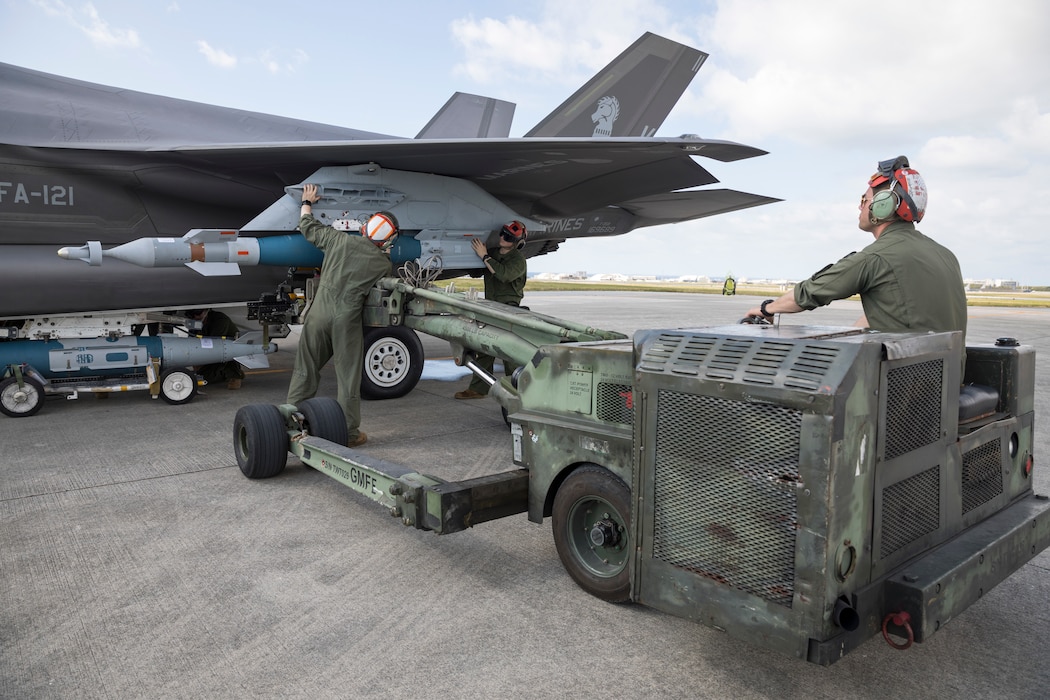

Armament   Internal and external capabilities. Munitions carried vary based on mission requirements.

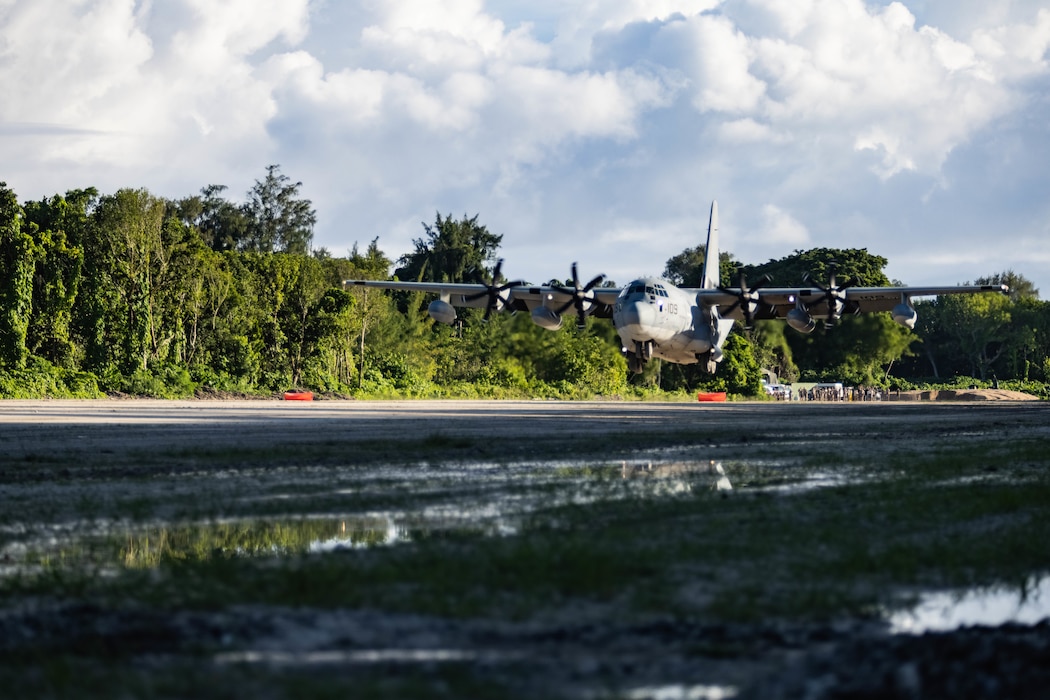

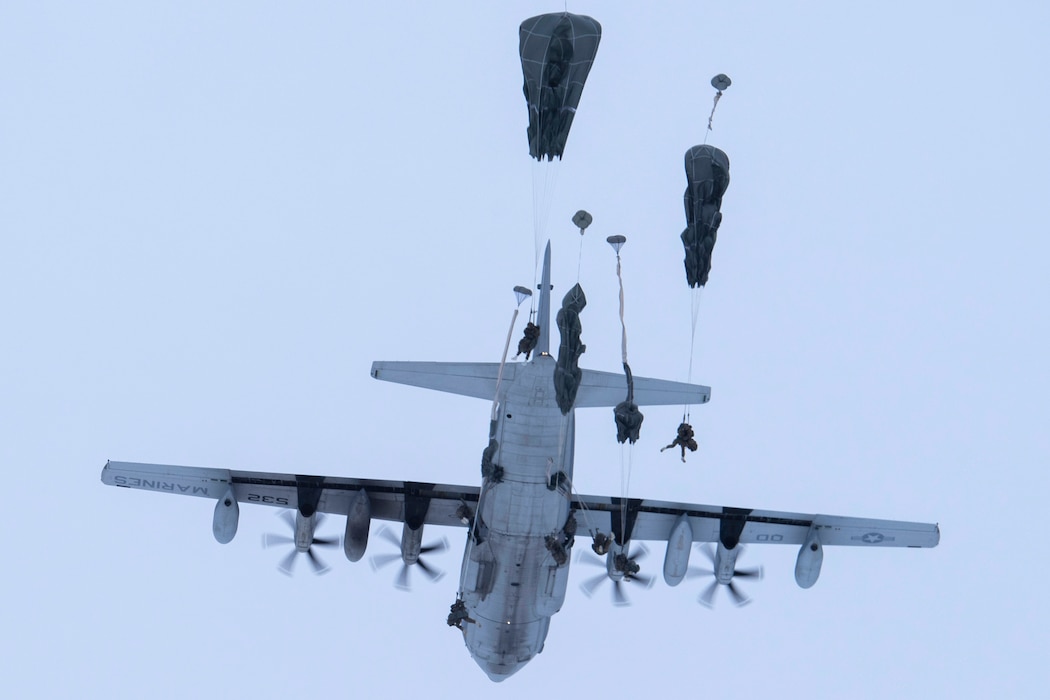

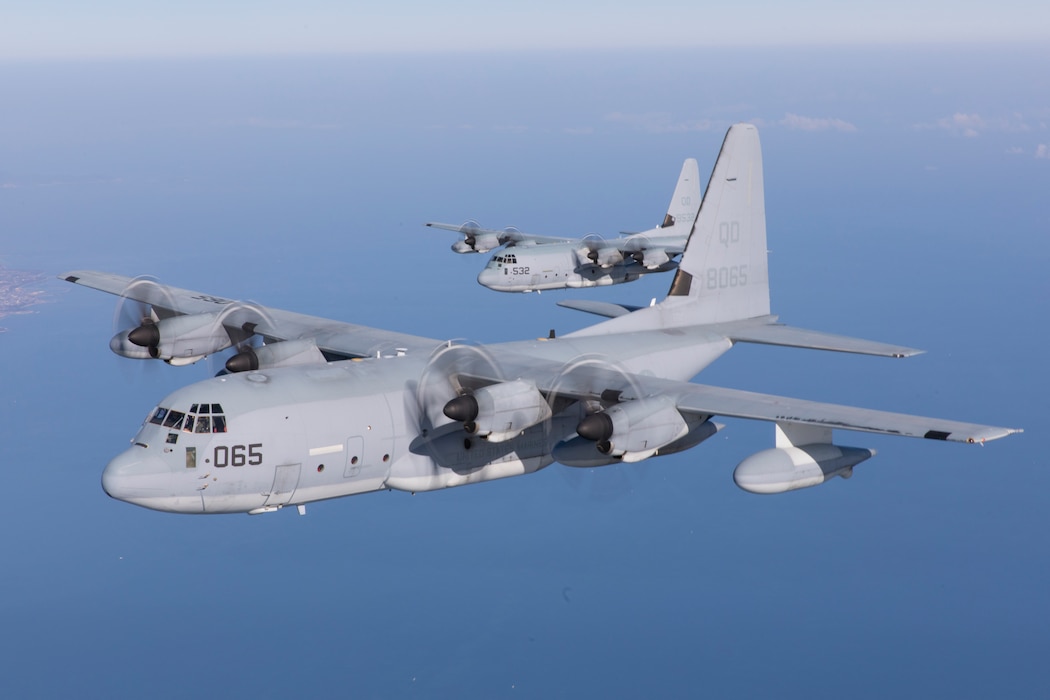

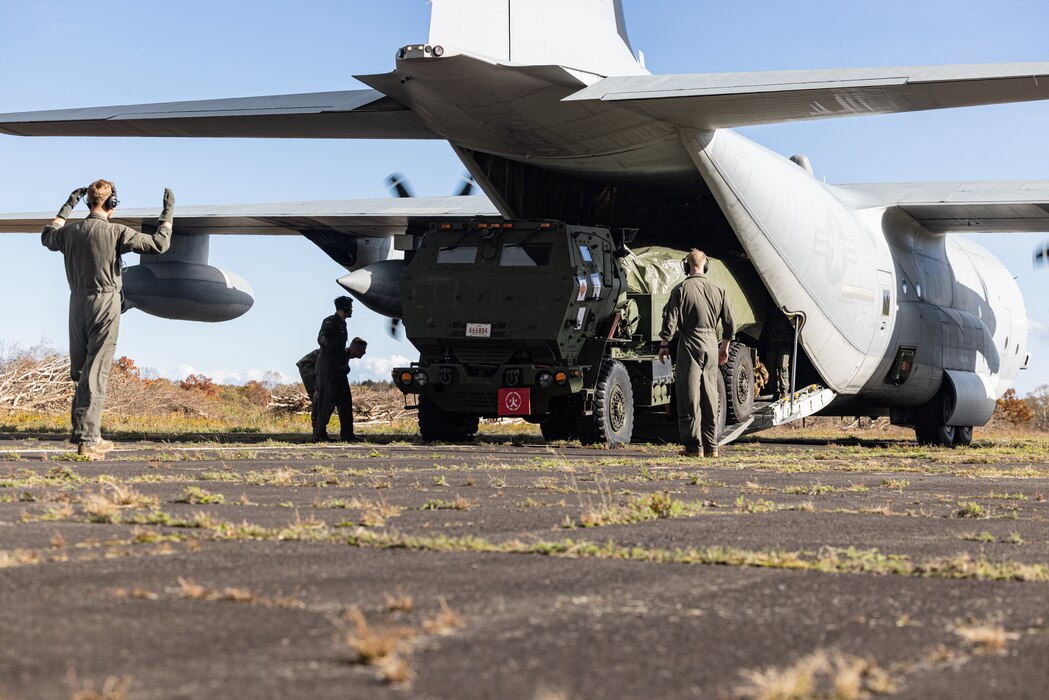

The KC-130J Super Hercules is a multi-mission, medium-lift, fixed-wing tactical aircraft that provides long-range, land-based tactical and logistical support to Marine and Joint operating forces. It supports a wide range of missions, including aerial and ground-based refueling, troop and cargo transport, and airborne delivery. With its modernized communications suite and avionics, the KC-130J can operate from developed or expeditionary environments with limited runway space and can rapidly reconfigure to support different mission sets.


Tanker Capability

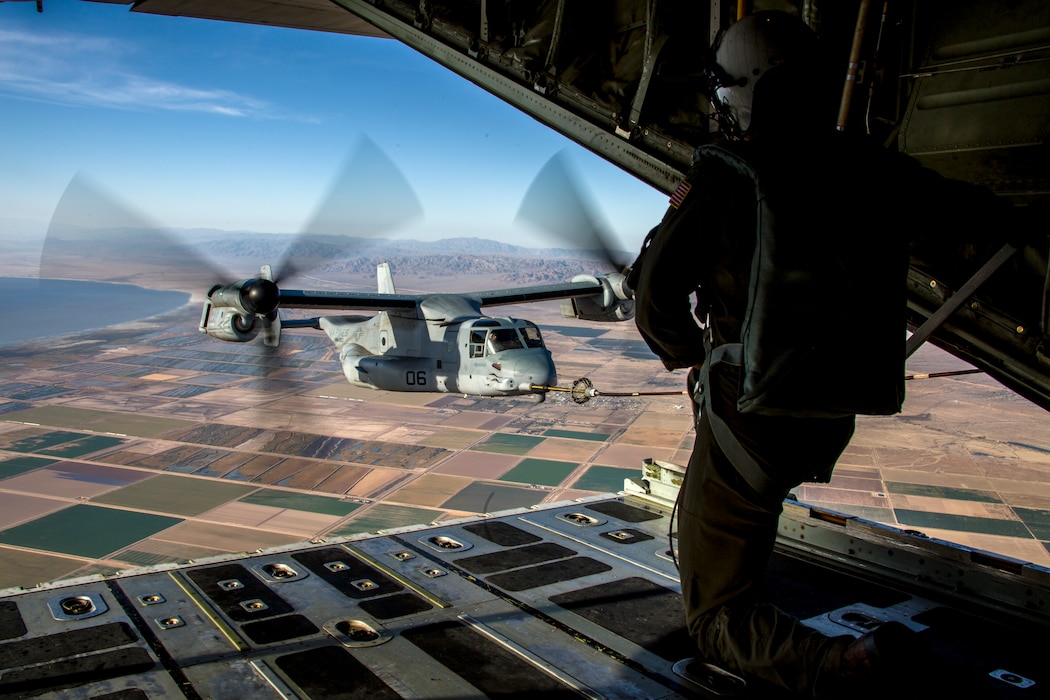

  • The KC-130J is the primary aerial refueling platform for U.S. Marine Corps tactical aircraft, tiltrotor aircraft, helicopters, and fixed-wing aircraft.
  • Equipped with advanced hose-and-drogue refueling systems.

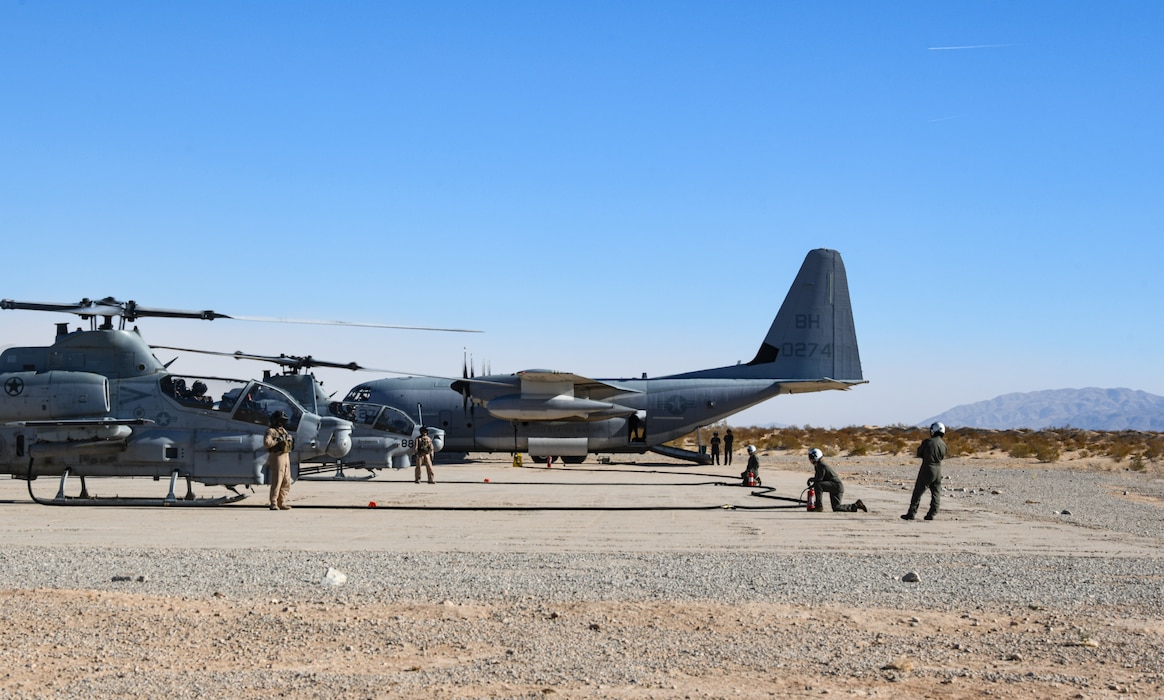

  • Provides both in-flight refueling and ground refueling capabilities.
  •  Proven operationally with more than 20,000 flight hours in combat theaters.

Specifications

Category Data
Length 97 ft 9 in (29.79 m)
Wingspan 132 ft 7 in (40.41 m)
Height (Tail) 38 ft 3 in (11.66 m)
Maximum Takeoff Weight 164,000 lb (74,389 kg)
Maximum Fuel Capacity 61,364 lb (with external tanks)
Maximum Payload 47,903 lb (at Maximum Wing Relieving Fuel)
Cargo Volume 4,551 cu ft
Airspeed 320 knots (368 mph/593 km/h)
Maximum Range 4,275 nautical miles (7,917 km) with external tanks
Ceiling 29,800 ft (9,083 m)
